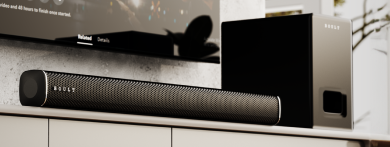

BassBox X60

Elevate your audio experience with the Boult BassboxX60, a compact yet powerful sound system delivering 60W RMS with BoomXTechnology for rich, studio-quality bass. The 2.1 Channel setup, enhanced by anIntegrated DSP and 16-bit Stereo Engine, ensures clear and immersive sound.With versatile connectivity options like Bluetooth V5.4, AUX, USB, Optical, andHDMI(ARC), it's compatible with Smart TVs, laptops, gaming consoles, and more.Tailor your sound with EQ modes (music, movie, news), and effortlessly controleverything with the IR remote and Soundbar Control Panel. Perfect for those whoseek powerful sound in a sleek, versatile package

Specifications

Bluetooth name Bassbox X60
Total rated output 60W
Input voltage AC 110~240V 50Hz
Input signal source AUX, Bluetooth, HDMI/ARC, USB
Dimensions for sound bar 400*63*66mm
Dimensions for subwoofer 120*200*300mm

Remote control

Troubleshooting FAQs

How to connect BassBox X500 via Bluetooth?

Short press the “POWER” button on the soundbar or press the "MODE" button on the remote controller to switch it to BT mode. On your phone search for “BassBox X500” and connect

How to change the mode of connection?

Press the "MODE" button on the remote controller to enter AUX/USB/Bluetooth/Optical/HDMI(ARC) selection Mode.

How to play via USB?

Connect the USB to the soundbar input panel and it will play directly upon connecting.

What to do if the sound is distorted / of low volume / of low bass / of low quality?
  1. Check if connected device does not have any equalizer settings applied.
  2. Check if the problem still occurs if the device is moved closer and all obstacles in the middle are removed.
  3. Check if the distortion or quality lowers at all volumes or only at high volumes.
  4. Check for different media players and different devices and if the distortion happens on all devices or only on specific ones.
  5. Check if the problem occurs when connected to different power sockets.
What to do if there is no sound output?
  1. Check to see if the device has been properly connected, i.e. - The jack is properly inserted into the device for aux, OR - The HDMI cable from the unit's HDMI (ARC) slot to the HDMI (ARC) slot on your ARC-compatible TV is connected properly, OR - Check if the protective cap of the OPTICAL socket is removed, then connect an OPTICAL cable to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit, OR - Connected USB is functional, OR - Paired properly by Bluetooth then it is paired properly and the blue light is not blinking to indicate it is properly paired in Bluetooth mode.
  2. When using either of the Digital inputs, if there is no audio, try setting the TV output to PCM or connect directly to your Blu-ray/other source, some TVs do not pass-through digital audio, check the TV manual for details.
  3. Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
  4. Check if the device has been properly connected to the power socket and if the problem occurs on all modes of playback. If connected to the TV, ensure that the connections are secure, the TV supports the playback mode, and the volume is set properly on the TV
  5. Check if the device has been properly connected to the power socket and if the problem occurs on all modes of playback. If connected to the TV, ensure that the connections are secure, the TV supports the playback mode, and the volume is set properly on the TV.
  6. Check if the device was not subject to any mishandling or exposed to direct sunlight or hazards like fire.
What to do if the remote control is not working?
  1. Before you press any playback control button, first select the correct source.
  2. Reduce the distance between the remote control and the unit.
  3. Insert the battery with its polarities (+/-) aligned as indicated.
  4. Check that the batteries in the remote are functional and of the correct type, try to replace the battery.
  5. Aim the remote control directly at the sensor on the front of the unit.
  6. Check if the controls are not working while connected to another device.
  7. Check if the device is in "AUX" mode because the remote buttons will not work in aux mode.
If the device is not powering On?
  1. Check if the BassBox X180 and the subwoofer are plugged in properly to the power source and turned on using the button on the soundbar or the remote.
  2. Check if there are any loose wirings.
  3. Turn off the power switch and wait for a few minutes and try again.
What if the in-built controls are not working?
  1. Check if the controls do not work while connected to another device.
  2. Check if the device is in "AUX" mode because the buttons will not work in aux mode.
  3. Check if your current media player supports such controls or if the controls do not function on other media players as well.
  4. Check if the controls have been physically damaged or exposed to any hazards.

General FAQs

How to set up the Bassbox X250?
  1. Plug in the power cable of the soundbar to an external power socket; the unit goes into the standby mode.
  2. Short press the "Power" Button on the remote or soundbar control panel to turn on the soundbar.
How to connect with Amazon Firestick?

The Amazon Firestick connects separately to the TV and not with the soundbar.

How to select the EQ modes?

EQ Modes : The soundbar has three Equalizer modes and can be changes from the master remote control.

  1. EQ 1 – Movie
  2. EQ 2 – Music
  3. EQ 3 – News
How to play audio via Bluetooth connection?

Press the "Input" button on the remote control or short press the “POWER” button on the soundbar to enter Bluetooth Mode. Turn on the Bluetooth functionality on your media device, search for “BassBox X250” and select the same to establish the pairing.

How to play audio via AUX mode?

Use the provided 3.5mm AUX cable to connect external audio sources to the soundbar. Press the input button on the remote control to select AUX Mode.

How to play audio via USB mode?
  1. Insert your USB drive into the USB port on the soundbar. The soundbar goes automatically under USB mode.
  2. You can also press the input button on the remote control to switch to "USB" mode.
How to play audio via optical mode?
  1. Use an Optical cable to connect the soundbar to your optical device.
  2. Press the "Input" button on the remote control to select the OPT mode.
How to play audio via HDMI (ARC) mode?
  1. Use an HDMI cable to connect the soundbar to your HDMI(ARC) enabled device.
  2. Press the "Input" button on the remote control to select the HDMI(ARC) mode.
Does it have FM?

No, it doesn't have in-built FM.

Does it support Alexa?

No, it doesn't support Alexa.

Does it support Dolby audio?

No, it does not support Dolby Audio Technology.

Does it work with Non-Smart TVs / TVs without Bluetooth?

Yes, it does use HDMI (Arc)/ Optical/ AUX.

Does the Subwoofer have separate controls / Can it be used Separately?

No, it can be used with soundbar only.

Does it work on devices other than TV?

It works on devices with Bluetooth, ARC, or AUX connectivity.

Is it Wall mountable?

Yes, it is mountable.

Does it come with a remote?

Yes.

Is installation provided?

No. The installation is not provided.
